# Haste makes waste

1. 转换成灰度图像
2. 计算梯度
3. 通过寻找最大梯度找到边界

# 2. Sobel Operator Sobel算子

## 2.1 代码示例:

``````import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import numpy as np
%matplotlib inline

plt.imshow(image)
import cv2  #bringing in OpenCV libraries
# 灰度变换
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY) #grayscale conversion

# 计算x和y方向的sobel operator
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1)

abs_sobelx = np.absolute(sobelx)
scaled_sobelx = np.uint8(255*abs_sobelx/np.max(abs_sobelx))

abs_sobely = np.absolute(sobely)
scaled_sobely = np.uint8(255*abs_sobely/np.max(abs_sobely))

thresh_min = 20
thresh_max = 100

sxbinary = np.zeros_like(scaled_sobelx)
sxbinary[(scaled_sobelx >= thresh_min) & (scaled_sobelx <= thresh_max)] = 1

sybinary = np.zeros_like(scaled_sobely)
sybinary[(scaled_sobely >= thresh_min) & (scaled_sobely <= thresh_max)] = 1

f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 10))
ax1.set_title("x image", fontsize=24)
ax1.imshow(sxbinary,cmap='gray')
ax2.set_title("y image", fontsize=24)
ax2.imshow(sybinary,cmap='gray')

plt.show()
``````

## 2.2 处理步骤:

• 转换为灰度图像，`gray = cv2.cvtColor(im, cv2.COLOR_RGB2GRAY)`
• 计算x方向和y方向的导数:
``````sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1)
``````

sobelx结果:

``````[[   0.   38.  292. ..., -258.  -28.    0.]
[   0.  173.  365. ..., -315. -143.    0.]
[   0.  405.  356. ..., -293. -346.    0.]
...,
[   0.  185.  191. ...,   77.  234.    0.]
[   0.   71.  169. ...,  155.  207.    0.]
[   0.    4.  112. ...,  192.  166.    0.]]
``````

sobely结果:

``````[[   0.    0.    0. ...,    0.    0.    0.]
[  22.  157.  365. ...,  311.  139.   24.]
[ 118.  215.  230. ...,  209.  200.  112.]
...,
[ -62. -109. -121. ...,   49.  104.  118.]
[   8.  -59. -183. ...,  157.  153.  112.]
[   0.    0.    0. ...,    0.    0.    0.]]
``````
• 计算绝对值并将其转换成8bit
``````abs_sobelx = np.absolute(sobelx)
scaled_sobelx = np.uint8(255*abs_sobelx/np.max(abs_sobelx))
``````

scaled_sobelx结果为:

``````[[  0  12  96 ...,  85   9   0]
[  0  57 121 ..., 104  47   0]
[  0 134 118 ...,  97 114   0]
...,
[  0  61  63 ...,  25  77   0]
[  0  23  56 ...,  51  68   0]
[  0   1  37 ...,  63  55   0]]
``````

# 3. Applying Sobel 应用Sobel

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import pickle

# Read in an image and grayscale it

# Define a function that applies Sobel x or y,
# then takes an absolute value and applies a threshold.
# Note: calling your function with orient='x', thresh_min=5, thresh_max=100
# should produce output like the example image shown above this quiz.
def abs_sobel_thresh(img, orient='x', thresh_min=0, thresh_max=255):

# Apply the following steps to img
# 1) Convert to grayscale
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
# 2) Take the derivative in x or y given orient = 'x' or 'y'
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0)
# 3) Take the absolute value of the derivative or gradient
abs_sobelx = np.absolute(sobelx)
# 4) Scale to 8-bit (0 - 255) then convert to type = np.uint8
scaled_sobelx = np.uint8(255*abs_sobelx/np.max(abs_sobelx))
# 5) Create a mask of 1's where the scaled gradient magnitude
# is > thresh_min and < thresh_max

binary_output = np.zeros_like(scaled_sobelx)
binary_output[(scaled_sobelx >= thresh_min) & (scaled_sobelx <= thresh_max)] = 1
#binary_output = np.copy(img) # Remove this line
return binary_output

# Run the function
grad_binary = abs_sobel_thresh(image, orient='x', thresh_min=20, thresh_max=100)
# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(image)
ax1.set_title('Original Image', fontsize=50)
``````

# 4. Magnitude of the Gradient 梯度大小

It’s important to note here that the kernel size should be an odd number. Since we are searching for the gradient around a given pixel, we want to have an equal number of pixels in each direction of the region from this central pixel, leading to an odd-numbered filter size - a filter of size three has the central pixel with one additional pixel in each direction, while a filter of size five has an additional two pixels outward from the central pixel in each direction.

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import pickle

# Define a function that applies Sobel x and y,
# then computes the magnitude of the gradient
# and applies a threshold
def mag_thresh(img, sobel_kernel=3, mag_thresh=(0, 255)):
# Convert to grayscale
gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)
# Take both Sobel x and y gradients
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)
# Rescale to 8 bit
# Create a binary image of ones where threshold is met, zeros otherwise

# Return the binary image
return binary_output

# Run the function
mag_binary = mag_thresh(image, sobel_kernel=3, mag_thresh=(30, 100))
# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(image)
ax1.set_title('Original Image', fontsize=50)
ax2.imshow(mag_binary, cmap='gray')
ax2.set_title('Thresholded Magnitude', fontsize=50)
``````

# 5. Direction of the Gradient 梯度方向

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import pickle

# Define a function that applies Sobel x and y,
# then computes the direction of the gradient
# and applies a threshold.
def dir_threshold(img, sobel_kernel=3, thresh=(0, np.pi/2)):

# Apply the following steps to img
# 1) Convert to grayscale
gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)
# 2) Take the gradient in x and y separately
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)

# 3) Take the absolute value of the x and y gradients
abs_sobelx = np.absolute(sobelx)
abs_sobely = np.absolute(sobely)

# 4) Use np.arctan2(abs_sobely, abs_sobelx) to calculate the direction of the gradient
# 5) Create a binary mask where direction thresholds are met

#binary_output = np.copy(img) # Remove this line
return binary_output

# Run the function
dir_binary = dir_threshold(image, sobel_kernel=15, thresh=(0.7, 1.3))
# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(image)
ax1.set_title('Original Image', fontsize=50)
ax2.imshow(dir_binary, cmap='gray')
``````

# 6. Combining Thresholds 将阈值组合起来处理

## 6.1 代码如下:

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import pickle

def abs_sobel_thresh(img, orient='x', sobel_kernel=3, thresh=(0, 255)):
# Apply threshold
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)

sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)
#
abs_sobel = np.absolute(sobelx)
if orient == 'y':
abs_sobel = np.absolute(sobely)

scaled_sobel = np.uint8(255*abs_sobel/np.max(abs_sobel))

#
grad_binary[(scaled_sobel >= thresh[0]) & (scaled_sobel <= thresh[1])] = 1

def mag_thresh(image, sobel_kernel=3, mag_thresh=(0, 255)):
# Apply threshold
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)

sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)

return mag_binary

def dir_threshold(image, sobel_kernel=3, thresh=(0, np.pi/2)):
# Apply threshold
# Apply the following steps to img
# 1) Convert to grayscale
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
# 2) Take the gradient in x and y separately
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)
sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)

# 3) Take the absolute value of the x and y gradients
abs_sobelx = np.absolute(sobelx)
abs_sobely = np.absolute(sobely)

# 4) Use np.arctan2(abs_sobely, abs_sobelx) to calculate the direction of the gradient
# 5) Create a binary mask where direction thresholds are met

return dir_binary

# Choose a Sobel kernel size
ksize = 3 # Choose a larger odd number to smooth gradient measurements

# Apply each of the thresholding functions
gradx = abs_sobel_thresh(image, orient='x', sobel_kernel=ksize, thresh=(0, 20))
grady = abs_sobel_thresh(image, orient='y', sobel_kernel=ksize, thresh=(0, 100))
mag_binary = mag_thresh(image, sobel_kernel=ksize, mag_thresh=(30, 100))
dir_binary = dir_threshold(image, sobel_kernel=ksize, thresh=(0.9, 1))

#
combined = np.zeros_like(dir_binary)
combined[((gradx == 1) & (grady == 1)) | ((mag_binary == 1) & (dir_binary == 1))] = 1

# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(image)
ax1.set_title('Original Image', fontsize=50)
ax2.imshow(combined, cmap='gray')
ax2.set_title('combined()', fontsize=50)
``````

# 8. Color Thresholding 颜色阈值

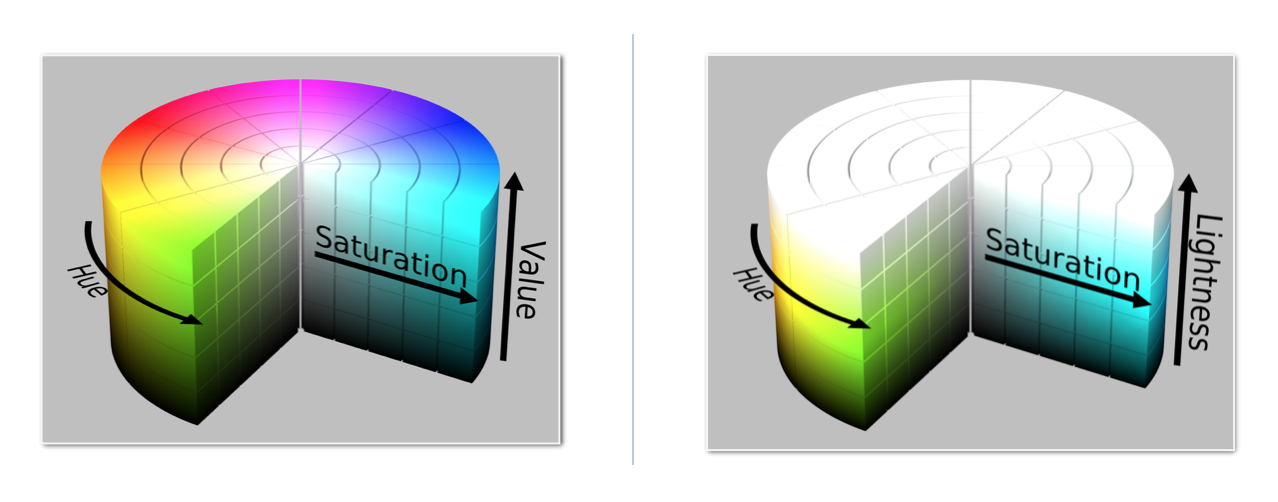

Color space提供了一种将颜色分类，以及将其通过数字图像呈现的方式。 RGB是red-green-blue的颜色空间，通过 `matplotlib.image.imread()`得到的就是RGB图像，通过opencv`cv2.imread()`得到的是BGR图像。

• H,hue,色调
• S,saturation,饱和度，约接近白色，饱和度越低
• V,value,值，衡量颜色亮暗的方式
• L,lightness,亮度，衡量颜色亮暗的方式

# 9. HLS intuitions

• A图有最小的L值，即亮度
• A/B/C有相同的色调H。

# 10. HLS and Color Thresholds HLS颜色空间和颜色阈值

## 10.1 grayscale

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg

thresh = (180, 255)
gray = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
binary = np.zeros_like(gray)
binary[(gray > thresh[0]) & (gray <= thresh[1])] = 1

f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(gray, cmap='gray')
ax1.set_title('gray Image', fontsize=50)
ax2.imshow(binary, cmap='gray')
ax2.set_title('gray binary Image', fontsize=50)
``````

## 10.2 individual RGB color channels

``````R = image[:,:,0]
G = image[:,:,1]
B = image[:,:,2]

f, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(24, 9))
f.tight_layout()
ax1.imshow(R, cmap='gray')
ax1.set_title('R Image', fontsize=28)

ax2.imshow(G, cmap='gray')
ax2.set_title('G Image', fontsize=28)

ax3.imshow(B, cmap='gray')
ax3.set_title('B Image', fontsize=28)

``````

## 10.3 R channel与R binary

``````thresh = (200, 255)
binary = np.zeros_like(R)
binary[(R > thresh[0]) & (R <= thresh[1])] = 1

f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(R, cmap='gray')
ax1.set_title('R Channel Image', fontsize=50)
ax2.imshow(binary, cmap='gray')
ax2.set_title('R binary Image', fontsize=50)
``````

## 10.4 HLS

``````hls = cv2.cvtColor(image, cv2.COLOR_RGB2HLS)
H = hls[:,:,0]
L = hls[:,:,1]
S = hls[:,:,2]

f, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(24, 9))
f.tight_layout()
ax1.imshow(H, cmap='gray')
ax1.set_title('H Image', fontsize=28)

ax2.imshow(L, cmap='gray')
ax2.set_title('L Image', fontsize=28)

ax3.imshow(S, cmap='gray')
ax3.set_title('S Image', fontsize=28)

``````

## 10.5 S channel与S binary

``````thresh = (90, 255)
binary = np.zeros_like(S)
binary[(S > thresh[0]) & (S <= thresh[1])] = 1

f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(S, cmap='gray')
ax1.set_title('S Channel Image', fontsize=50)
ax2.imshow(binary, cmap='gray')
ax2.set_title('S binary Image', fontsize=50)
``````

## 10.6 H channel与H binary

``````thresh = (15, 100)
binary = np.zeros_like(H)
binary[(H > thresh[0]) & (H <= thresh[1])] = 1

f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(H, cmap='gray')
ax1.set_title('H Channel Image', fontsize=50)
ax2.imshow(binary, cmap='gray')
ax2.set_title('H binary Image', fontsize=50)
``````

# 11. HLS Quiz

``````import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import numpy as np
import cv2

# Read in an image, you can also try test1.jpg or test4.jpg

# Define a function that thresholds the S-channel of HLS
# Use exclusive lower bound (>) and inclusive upper (<=)
def hls_select(img, thresh=(0, 255)):
# 1) Convert to HLS color space
hls = cv2.cvtColor(image, cv2.COLOR_RGB2HLS)
S = hls[:,:,2]
# 2) Apply a threshold to the S channel
binary_output = np.zeros_like(S)
binary_output[(S > thresh[0]) & (S <= thresh[1])] = 1

# 3) Return a binary image of threshold result

return binary_output

hls_binary = hls_select(image, thresh=(90, 255))

# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()
ax1.imshow(image)
ax1.set_title('Original Image', fontsize=50)
ax2.imshow(hls_binary, cmap='gray')
ax2.set_title('Thresholded S', fontsize=50)
``````

## 12.1 代码

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg

# Edit this function to create your own pipeline.

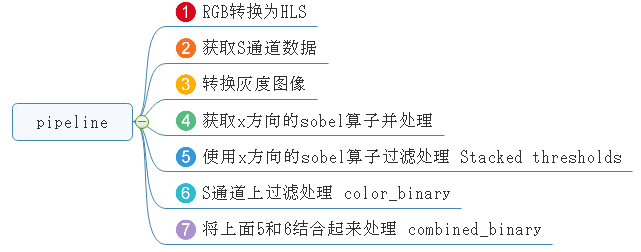

def pipeline(img, s_thresh=(170, 255), sx_thresh=(20, 100)):
img = np.copy(img)
# Convert to HLS color space and separate the V channel
hls = cv2.cvtColor(img, cv2.COLOR_RGB2HLS)
s_channel = hls[:,:,2]
gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)

# Sobel x
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0) # Take the derivative in x
abs_sobelx = np.absolute(sobelx) # Absolute x derivative to accentuate lines away from horizontal
scaled_sobel = np.uint8(255*abs_sobelx/np.max(abs_sobelx))

sxbinary = np.zeros_like(scaled_sobel)
sxbinary[(scaled_sobel >= sx_thresh[0]) & (scaled_sobel <= sx_thresh[1])] = 1

# Threshold color channel
s_binary = np.zeros_like(s_channel)
s_binary[(s_channel >= s_thresh[0]) & (s_channel <= s_thresh[1])] = 1
# Stack each channel
color_binary = np.dstack(( np.zeros_like(sxbinary), sxbinary, s_binary)) * 255

# Combine the two binary thresholds
combined_binary = np.zeros_like(sxbinary)
combined_binary[(s_binary == 1) | (sxbinary == 1)] = 1

return combined_binary

result = pipeline(image)

# Plot the result
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 9))
f.tight_layout()

ax1.imshow(image, cmap='gray')
ax1.set_title('Original Image', fontsize=40)

ax2.imshow(result, cmap='gray')
ax2.set_title('Pipeline Result', fontsize=40)
``````

## 12.2 参考代码

``````import numpy as np
import cv2
import matplotlib.pyplot as plt
import matplotlib.image as mpimg

# Convert to HLS color space and separate the S channel
# Note: img is the undistorted image
hls = cv2.cvtColor(img, cv2.COLOR_RGB2HLS)
s_channel = hls[:,:,2]

# Grayscale image
# NOTE: we already saw that standard grayscaling lost color information for the lane lines
# Explore gradients in other colors spaces / color channels to see what might work better
gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)

# Sobel x
sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0) # Take the derivative in x
abs_sobelx = np.absolute(sobelx) # Absolute x derivative to accentuate lines away from horizontal
scaled_sobel = np.uint8(255*abs_sobelx/np.max(abs_sobelx))

thresh_min = 20
thresh_max = 100
sxbinary = np.zeros_like(scaled_sobel)
sxbinary[(scaled_sobel >= thresh_min) & (scaled_sobel <= thresh_max)] = 1

# Threshold color channel
s_thresh_min = 170
s_thresh_max = 255
s_binary = np.zeros_like(s_channel)
s_binary[(s_channel >= s_thresh_min) & (s_channel <= s_thresh_max)] = 1

# Stack each channel to view their individual contributions in green and blue respectively
# This returns a stack of the two binary images, whose components you can see as different colors
color_binary = np.dstack(( np.zeros_like(sxbinary), sxbinary, s_binary)) * 255

# Combine the two binary thresholds
combined_binary = np.zeros_like(sxbinary)
combined_binary[(s_binary == 1) | (sxbinary == 1)] = 1

# Plotting thresholded images
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(20,10))
ax1.set_title('Stacked thresholds')
ax1.imshow(color_binary)

ax2.set_title('Combined S channel and gradient thresholds')
ax2.imshow(combined_binary, cmap='gray')
``````

# 13. 总结

``````f, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(24, 9))
f.tight_layout()
ax1.imshow(s_binary, cmap='gray')
ax1.set_title('Stacked thresholds', fontsize=28)

ax2.imshow(color_binary, cmap='gray')
ax2.set_title('color_binary', fontsize=28)

ax3.imshow(combined_binary, cmap='gray')
ax3.set_title('Combined S channel and gradient thresholds', fontsize=28)
